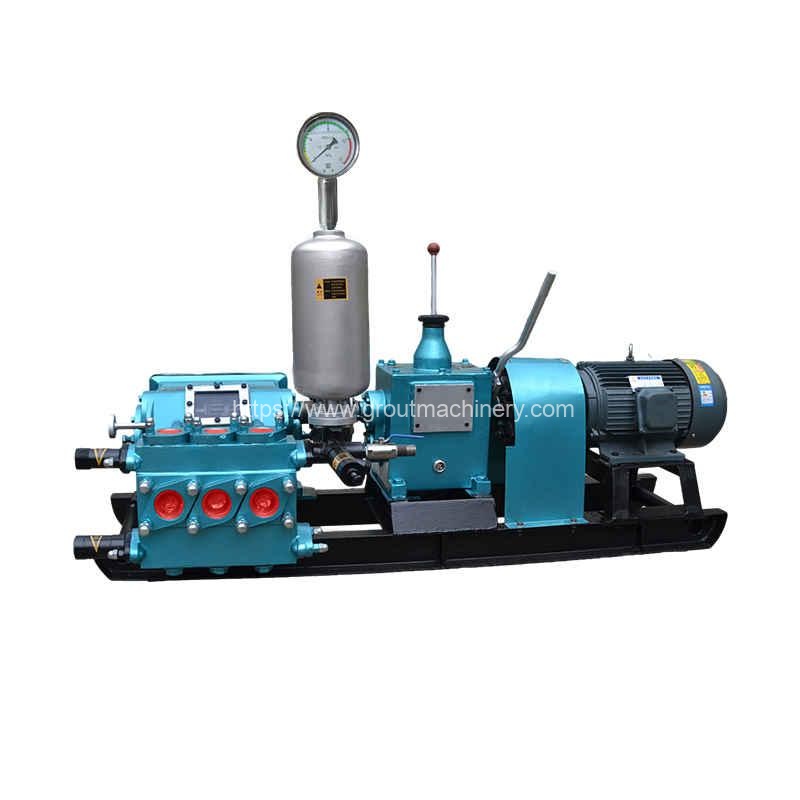

BW150 slurry grout mud drill rig pump Description
BW150 slurry grout mud drill rig pump is a two-cylinder, two-hydraulic pump. BW150 slurry grout mud drill rig pump has four flow rates and pressures with a wide range of flow rates and pressures. BW150 slurry grout mud drill rig pump is compact, lightweight, long-life and easy to operate. It is flexible, reliable and has many common standard parts. It is portable and therefore easy to move. It can be used in railroad, water conservancy, metallurgy, construction, geology and other industries with hole depth up to 1000m.
BW150 slurry grout mud drill rig pump , simple structure, easy to maintain and operate. The piston is lip self-sealing type, pressed by rubber and nylon protection gasket, equipped with anti-vibration pressure gauge and necessary spare parts, disassembly and assembly tools, etc. Optional bimetal cylinder liner can greatly increase its service life.
Features of BW150 slurry grout mud drill rig pump
1.BW150 slurry grout mud drill rig pump can be used for geological core drilling, chemical liquid conveying, mine drainage and soft base grouting construction.
2. BW150 slurry grout mud drill rig pump has four different flow rates and pressures, with a wide range of variation and application
3.BW150 slurry grout mud drill rig pump compact structure, light weight, small volume, beautiful appearance, can be driven by hydraulic motor, motor, diesel engine.
4. high degree of standardization and generalization of zero BW150 slurry grout mud drill rig pump parts, easy maintenance and operation.
5. BW150 slurry grout mud drill rig pump long life of wearing parts, high reliability.
Technical Parameters

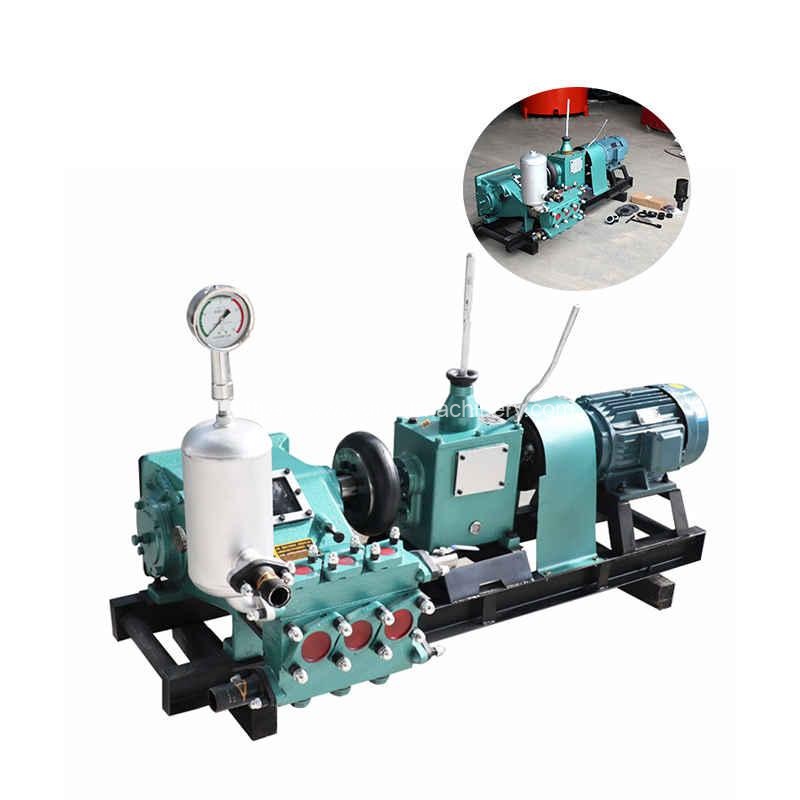

BW150 slurry grout mud drill rig pump for drill mud pump for sale | ||||||||
Model | BW150 | |||||||
Type | horizontal three cylinder reciprocating single acting piston pump | |||||||
Stroke length (mm) | 70 | |||||||
Cylinder dia. (mm) | 70 | |||||||
Pump speed(min-1) | 222 | 130 | 86 | 57 | 183 | 107 | 71 | 47 |
Flow(L/min) | 150 | 90 | 58 | 38 | 125 | 72 | 47 | 32 |
Pressure(Mpa) | 1.8 | 3.2 | 4.8 | 7.0 | 2.3 | 4.0 | 6.0 | 7.0 |
Input power(kw) | 7.5 | |||||||
Input speed(r/min) | 580 | |||||||
Input torque(NM) | 48 | |||||||
Dia. of water inlet pipe(mm) | 50 | |||||||
Dia. of water outlet pipe(mm) | 32 | |||||||
Dimension(mm) | 1155*795*995 | |||||||
Weight(kg) | 560 |
Use
It is mainly used for supplying flushing fluid in drilling of geology, geothermal, water source, shallow oil and gas layer, etc. The flushing fluid can be divided into mud and clear water, etc. It can also be used as a pump for the above medium. It can be used with water well drilling rigs of 1000-1500m depth and 130-90mm aperture.
Factory Show
Application
This is our BW150 slurry grouting pump, we have machine with different capacity, and their prices are different, you can contact us to get suitable machinery according to your project. Also custom machine is available as per your project.
