Products Description
DFSY90-100 double cylinder double liquid grouting machine is also known as double liquid grouting pump, is a double cylinder double acting piston pump, can transport cement mud, yellow mud, water glass, oil, water and other media. It can transport two kinds of media at the same time and can also transport a medium separately, stable performance, compact structure, easy operation and maintenance.
DFSY90-100 type double liquid grouting machine is widely used in tunnel, mining face grouting water plugging; Rock roadway and concrete wall grouting plugging water; Tunnel crack, broken rock mass, evacuation rock reinforcement; Anchorage grouting; Backfill grouting and prevent ground subsidence, prevent landslide, correct the building deflection of the grouting.
DFSY90-100 electric double-cylinder double-liquid grouting pump working principle:
The principle of grouting technology is to use the grouting pump machine to inject naturally solidified grout into the cracks of the built building, and use different grouting materials to change the physical properties of the building, making the building stronger. The construction of grouting technology is simple and fast. It can also improve the quality of construction projects without delaying the construction process, so that the construction can achieve twice the result with half the effort. It has been widely used in various projects.
Technical Parameters
| DFSY90-100 electric double-cylinder double-liquid grouting pump for sale | |
| Product type | DFSY90-100 |
| Slurry quantity | 5m³/h |
| Work power | 0-12Mpa |
| Motor power | 7.5KW |
| Noise power level | 110dB(A) |
| Outlet diameter | 32mm |
| Suction port diameter | 38mm |
| Dimensions | 1600*600*950mm |
| Totally weight | 380kg |
Application field of double liquid grouting machine
The double-liquid grouting machine is mainly used in the construction of railway road tunnels, water conservancy and hydropower, subway tunnels, mine roadways, military facilities, various underground buildings and emergency rescue. Key engineering applications of grouting machine: pipe jacking grouting, bentonite grouting, double liquid tunnel grouting (cement-sodium silicate), foundation treatment subsidence, ground subsidence, post grouting (plugging grouting), high pressure grouting , secondary grouting, basement waterproof plugging and other projects.
Features of electric double-cylinder double-liquid grouting pump
1.Electric double-cylinder double-liquid grouting pump, double-action double-cylinder, the piston reciprocates once, can realize the suction and discharge of two liquids at the same time.
2.Electric double-cylinder double-fluid grouting pump, hydraulically driven, the machine works reliably, and the pumping pressure is high.
3.Electric double-cylinder double-fluid grouting pump, hydraulic reversing mechanism, also suitable for workplaces with special requirements (explosion-proof).
4.Electric double-cylinder double-fluid grouting pump, compact structure, suitable for construction in narrow spaces.

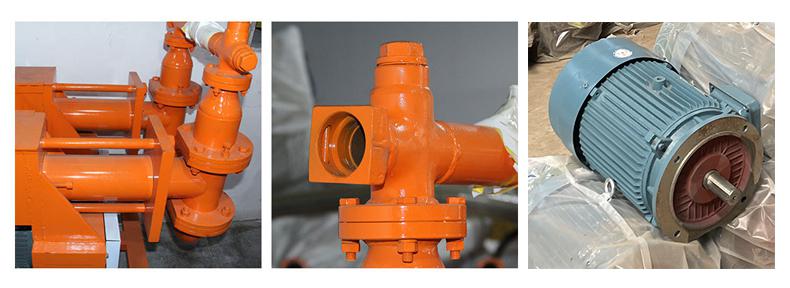

Details Images

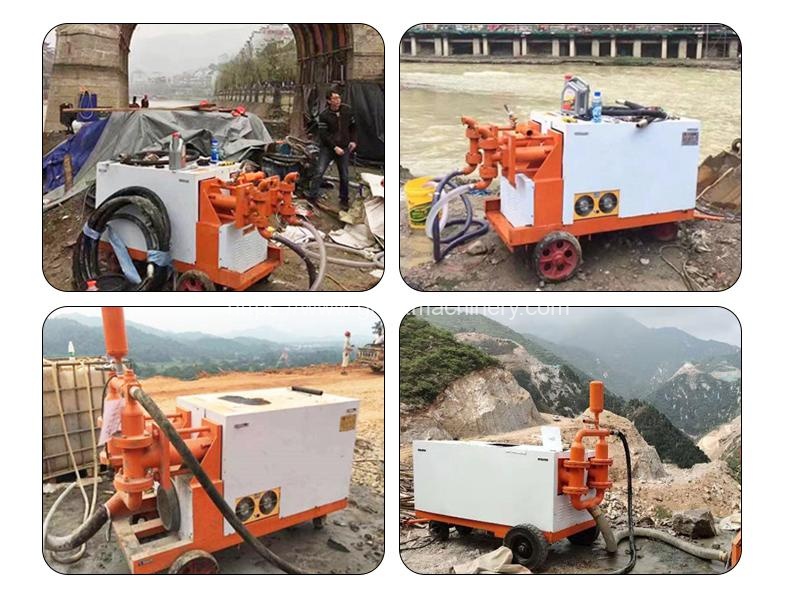

Application

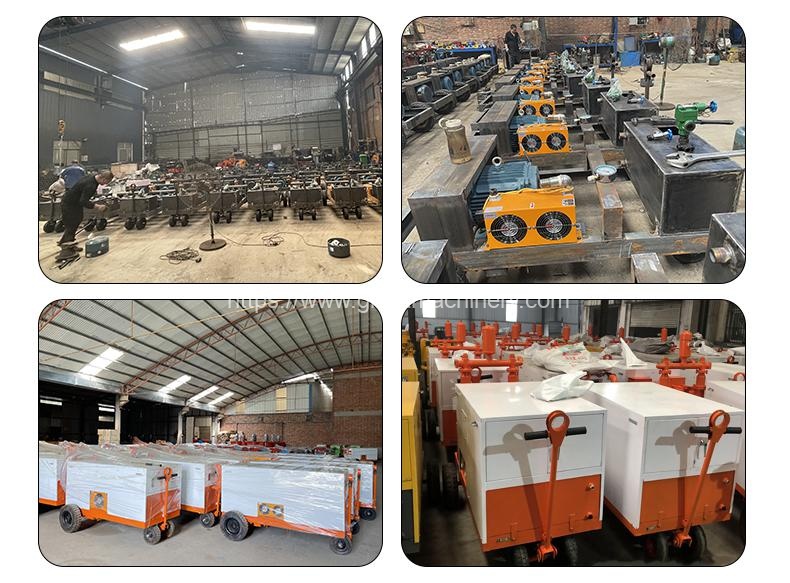

Factory Show
This is our DFSY90-100 electric double-cylinder double-liquid grouting pump for sale, we have machine with different capacity, and their prices are different, you can contact us to get suitable machinery according to your project. Also custom machine is available as per your project.
